Telecaster Wiring Harness- VitaminQ SILVER FOIL

These aren’t your average bargain-bin electronics with cold solder joints and scratchy signals. Every CLE GUITAR WORKS harness is hand-built and road-tested using only premium components — because your tone deserves better, and cheap parts have no place between your pickups and your amp.

Each harness includes:

★ CTS POTENTIOMETERS for smooth, consistent control

★ SWITCHCRAFT SWITCHES and DUAL-CONTACT JACKS for rock-solid reliability

★ Hand-wired by yours truly — with over 20 YEARS of experience wiring and modding guitars for A-LIST ARTISTS around the world

★ Vintage-spec push-back wire

★ Or Pure 20 AWG 5N SILVER lead wire (Depending on the series), paired with 16 AWG ground bus wire — delivering a clean, stable, and transparent signal chain.

Also included:

★ JUPITER CONDENSER CO. CAPACITORS — premium, American-made caps trusted by even the most tone-obsessed audiophiles. They deliver the clarity and musicality your rig deserves, both in the STUDIO and ON STAGE.

Wiring is the unsung hero of your signal chain. It’s not flashy — but it’s the main artery that carries your tone from pickup to amp:

UNCOLORED. UNFILTERED. EXACTLY how it’s meant to sound.

DON’T LET WEAK PARTS CHOKE YOUR SIGNAL.

DON’T LET CHEAP WIRING FAIL YOU ON STAGE.

INVEST IN RELIABILITY. INVEST IN TONE.

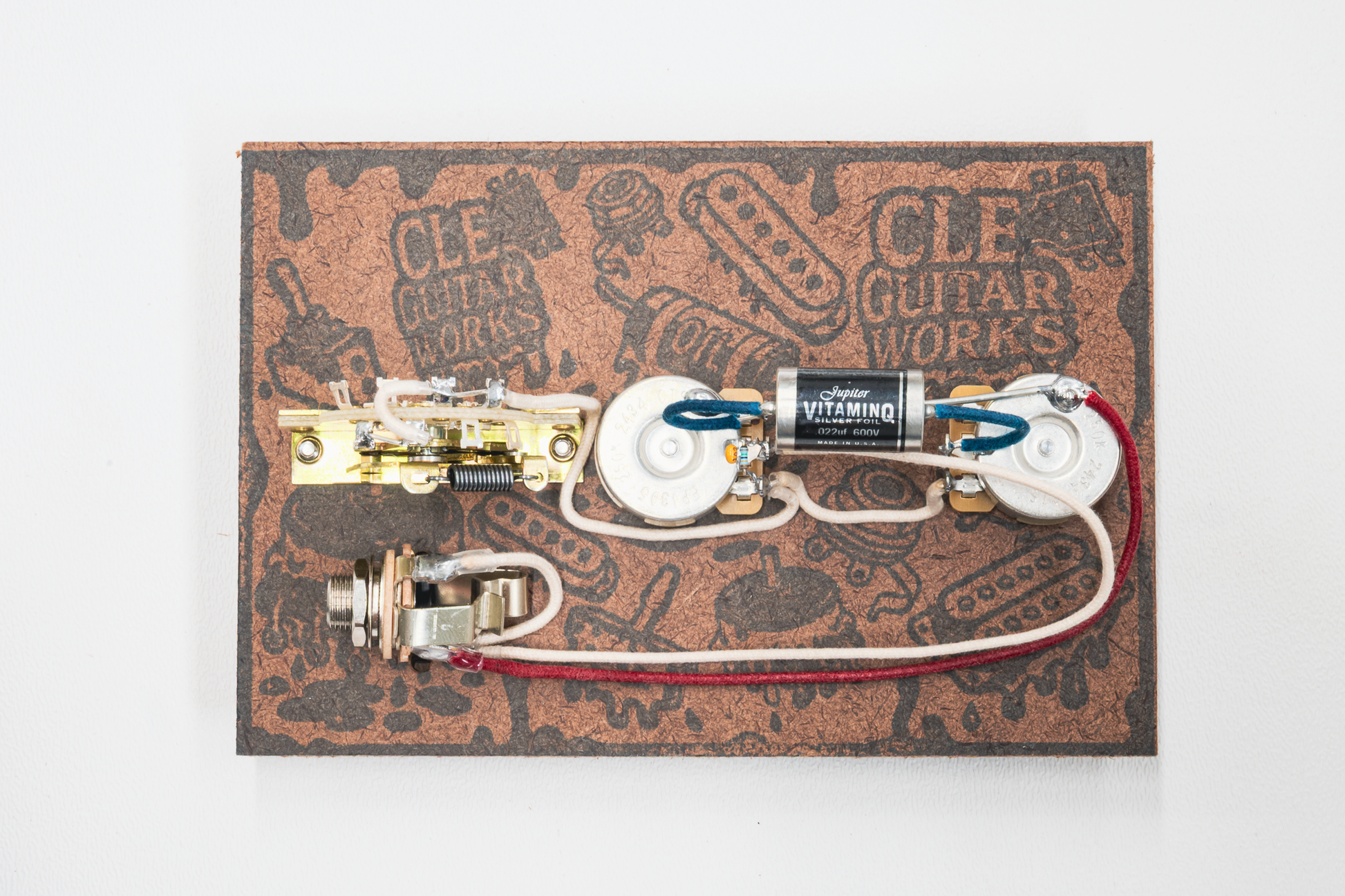

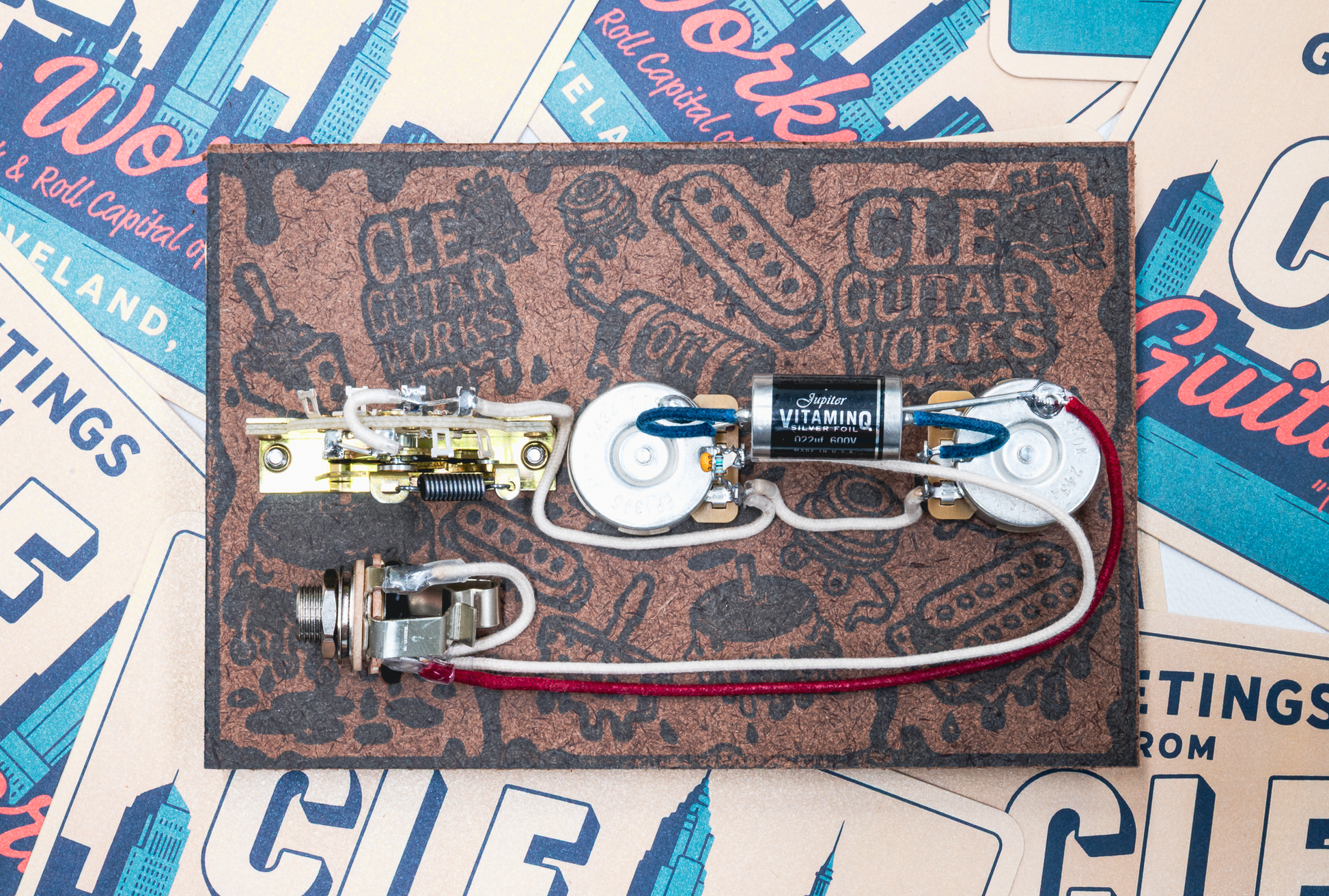

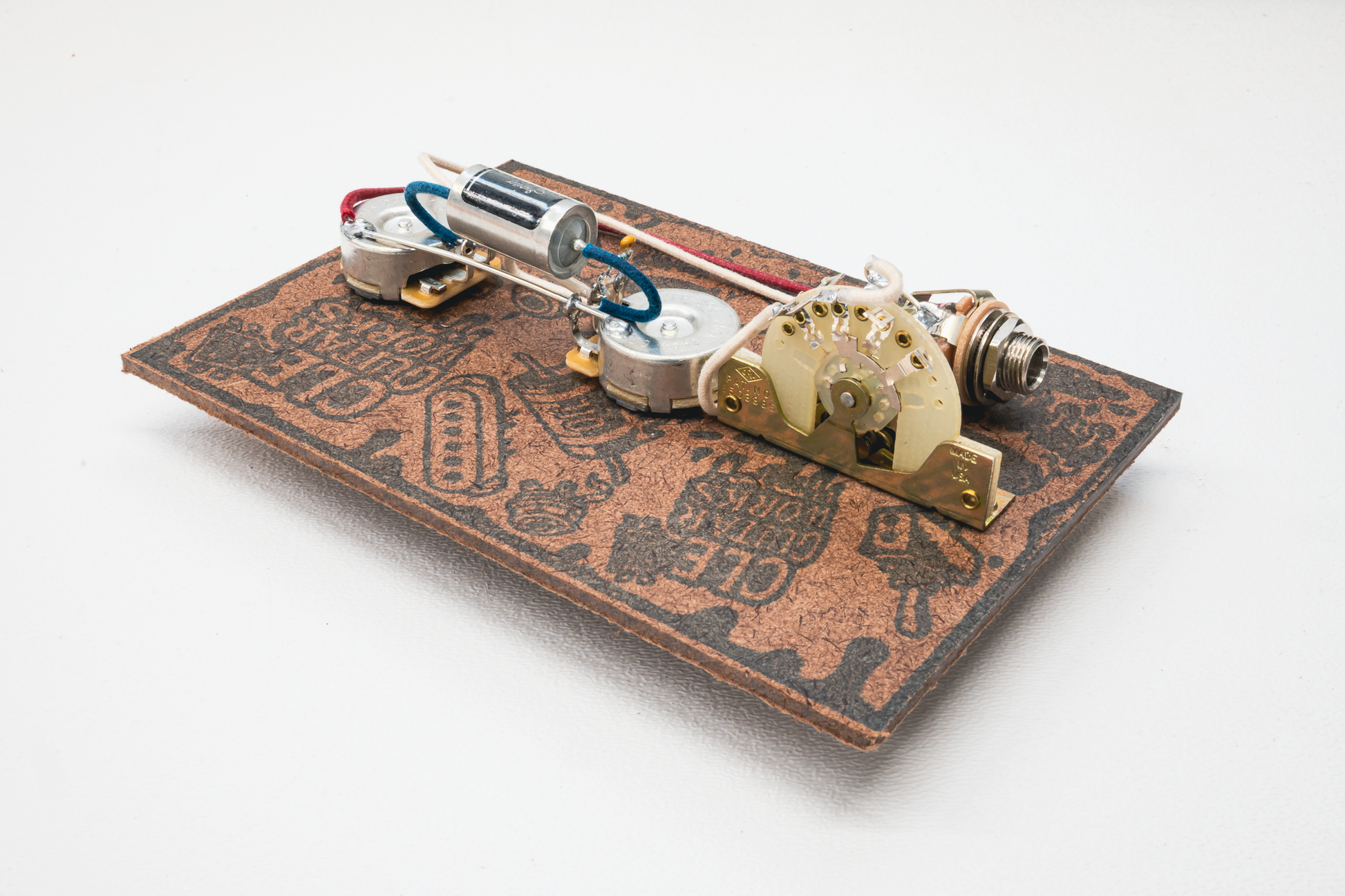

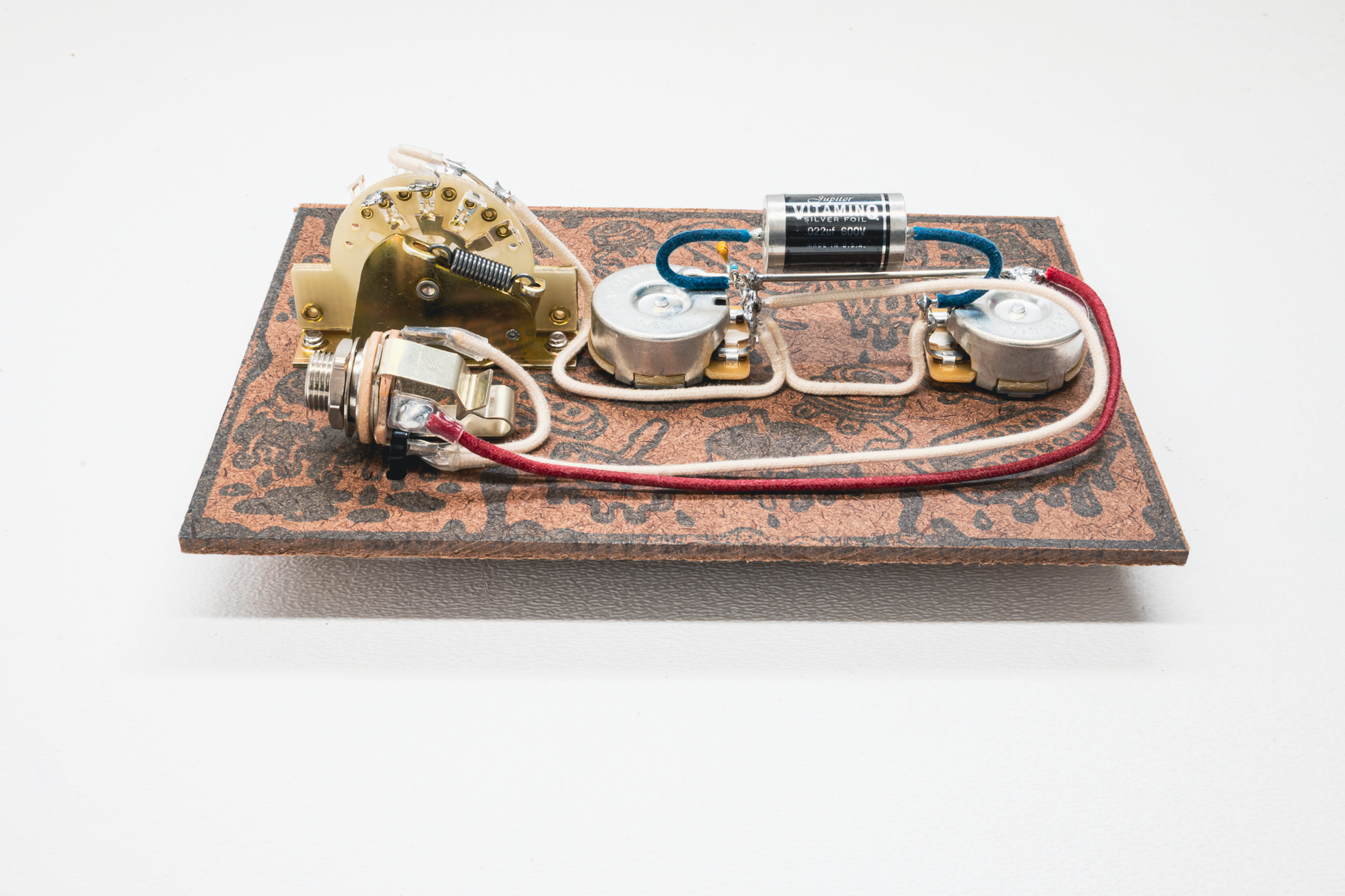

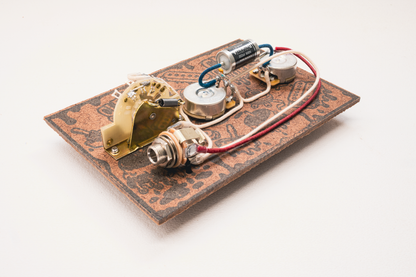

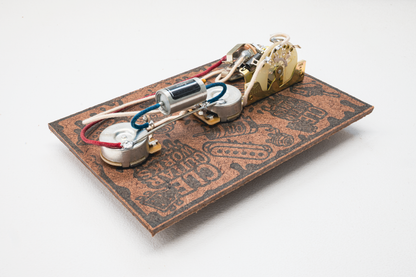

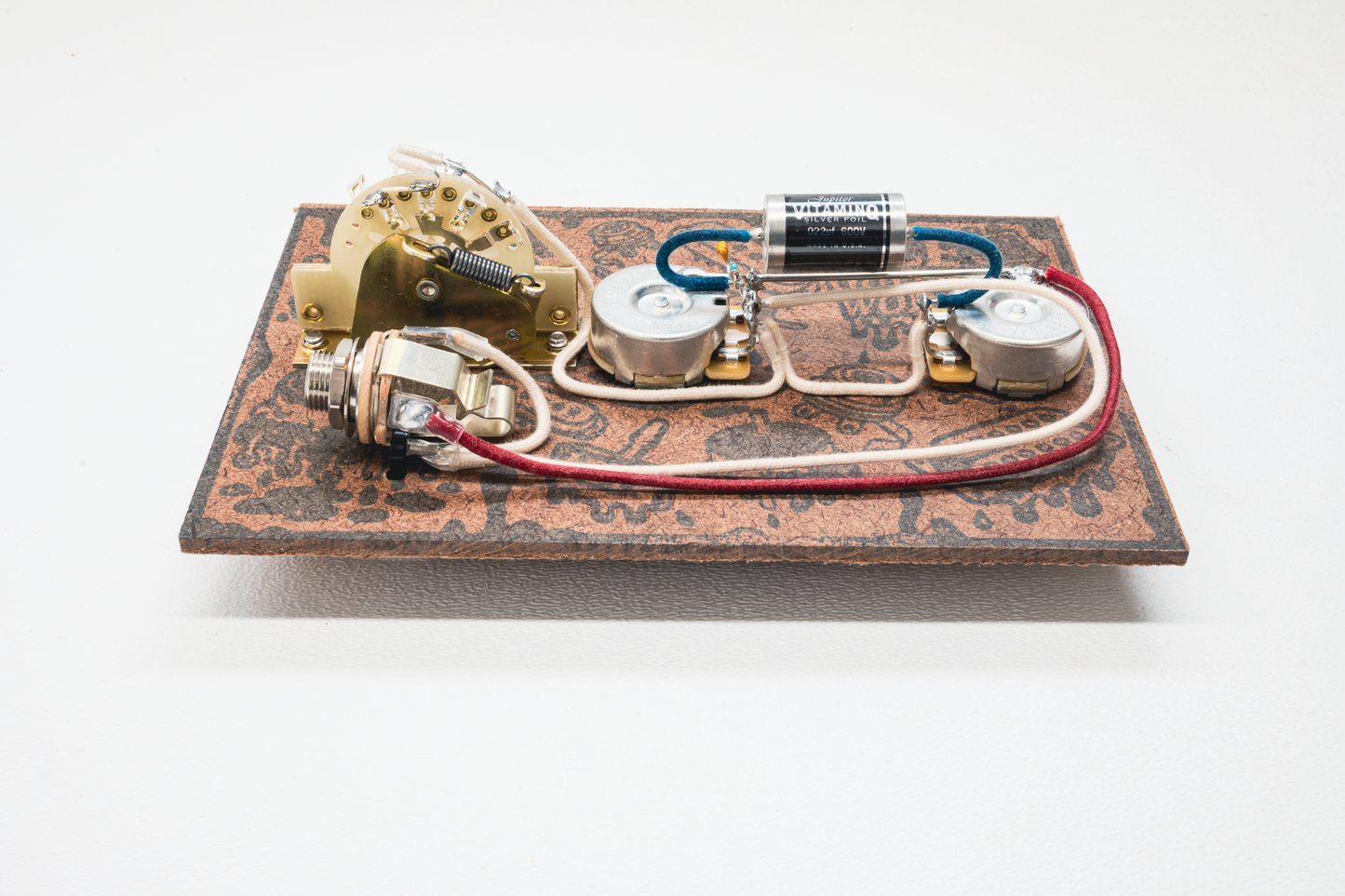

Telecaster Pre-Wired Kit (VitaminQ SILVER FOIL Spec)

★ This is where a Telecaster stops being “just a Tele” and turns into a precision instrument.

Not everyone needs this much refinement — but if you live for touch sensitivity, clarity, and dynamic range, this harness is built for you.

★ Kit Specs

• Potentiometers: (2) CTS 250K Vintage-Style Solid Shaft, 1/4” Bushing Length, Audio Taper

• Capacitor:

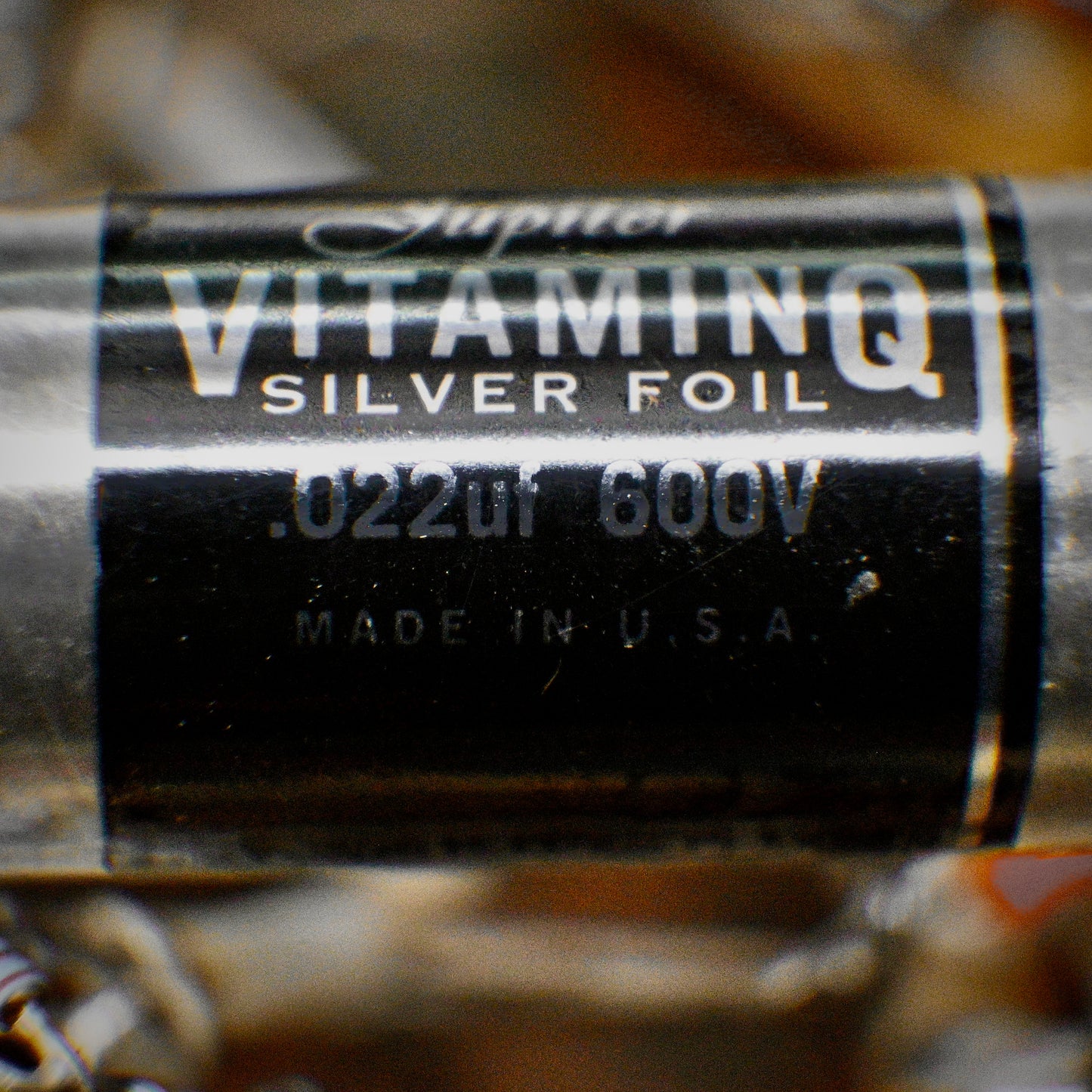

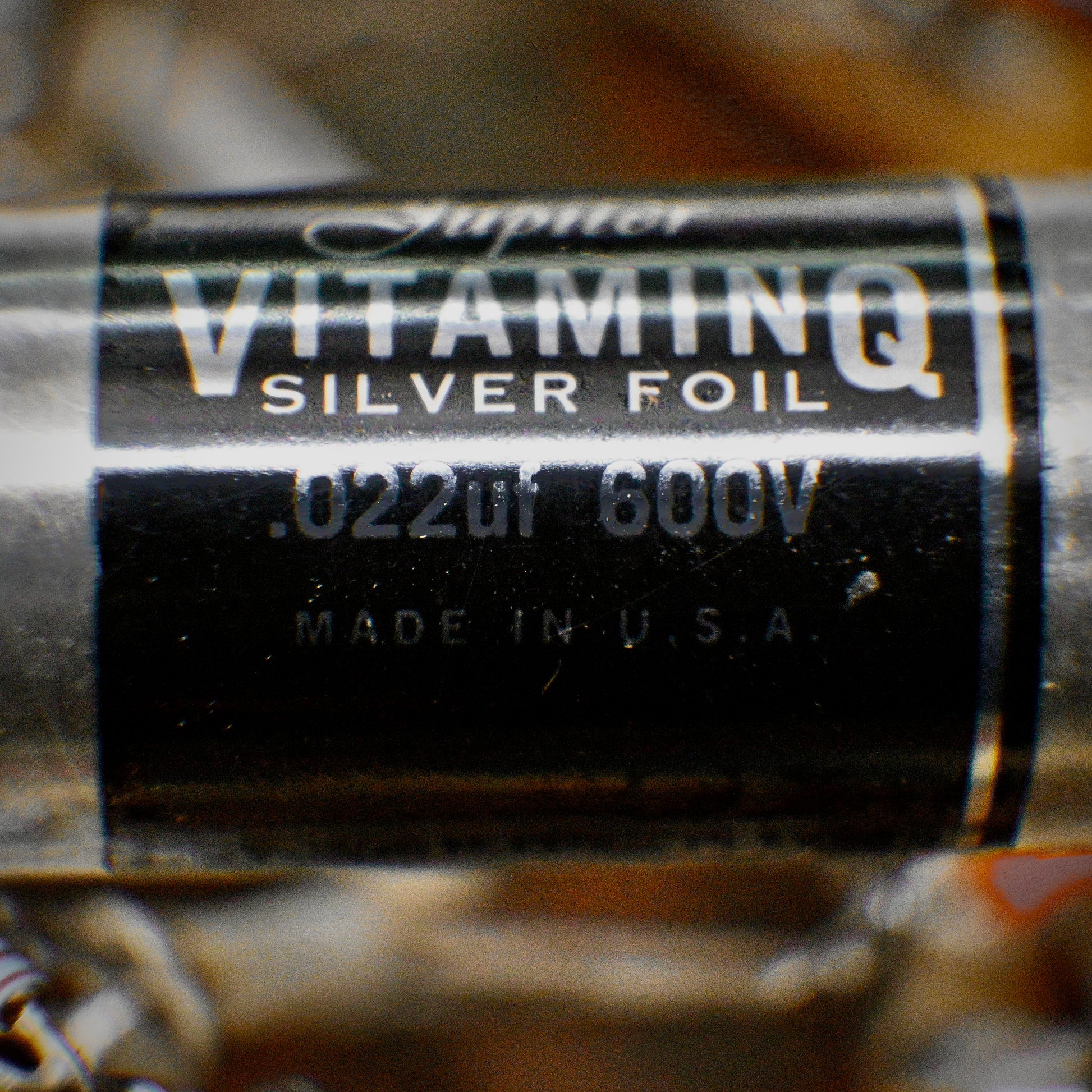

  – .022 µF Jupiter VitaminQ - Silver Foil Paper-in-Oil Capacitors

Specifications:

Tolerance:  +/- 5%

Operating Temperature:  85°C

Voltage:  600VDC

Pure Silver Foil

Dielectric:  Paper-in-Oil

Oil Type: Vitamin-Q

Leads:  Pure Silver Wire 5N

• Switch: CRL 3-Way Blade Switch

• Jack: Switchcraft Dual-Contact ¼” Mono Jack (Nickel)

• Wire: Pure 5N Silver 20AWG for all lead wiring

• Ground Bus: 16 AWG tinned copper

• Solder: Sn63/Pb37 rosin core for superior flow and strength

• Optional at no additional cost: Volume treble bleed circuit

★ Tone Notes

Pairing a .022µF Silver Foil Vitamin Q capacitor with 250K pots produces a slightly lighter high-end roll-off than a .047µF setup, allowing more midrange to come through while keeping the lows tight and the highs clear. Because a .022µF capacitor primarily affects the high frequencies, it delivers greater clarity, note separation, and harmonic detail, enhancing articulation without harshness. The silver foil construction further boosts harmonic richness and presence, making this an exceptional choice for players seeking premium Telecaster tone with glassy articulation and balanced warmth.

Is it excessive? Too much? Maybe. But I built it anyway for the most discriminating player — the one chasing a pure, uncompromised signal with zero weak links.

★ Compatibility

Fits most USA Fender Telecaster models with standard control plates.

Also compatible with most Squire Telecaster models; however, factory components (typically Alpha-brand pots) use smaller metric-sized shafts and mounting holes, so careful reaming may be required to fit ⅜” CTS pots.

In addition, the CRL switch’s throw distance may require light filing of the blade slot to ensure full neck and bridge position engagement.

This harness is wired in the modern Telecaster configuration — one master volume, one master tone, and a 3-way selector switch (bridge / bridge+neck / neck).
